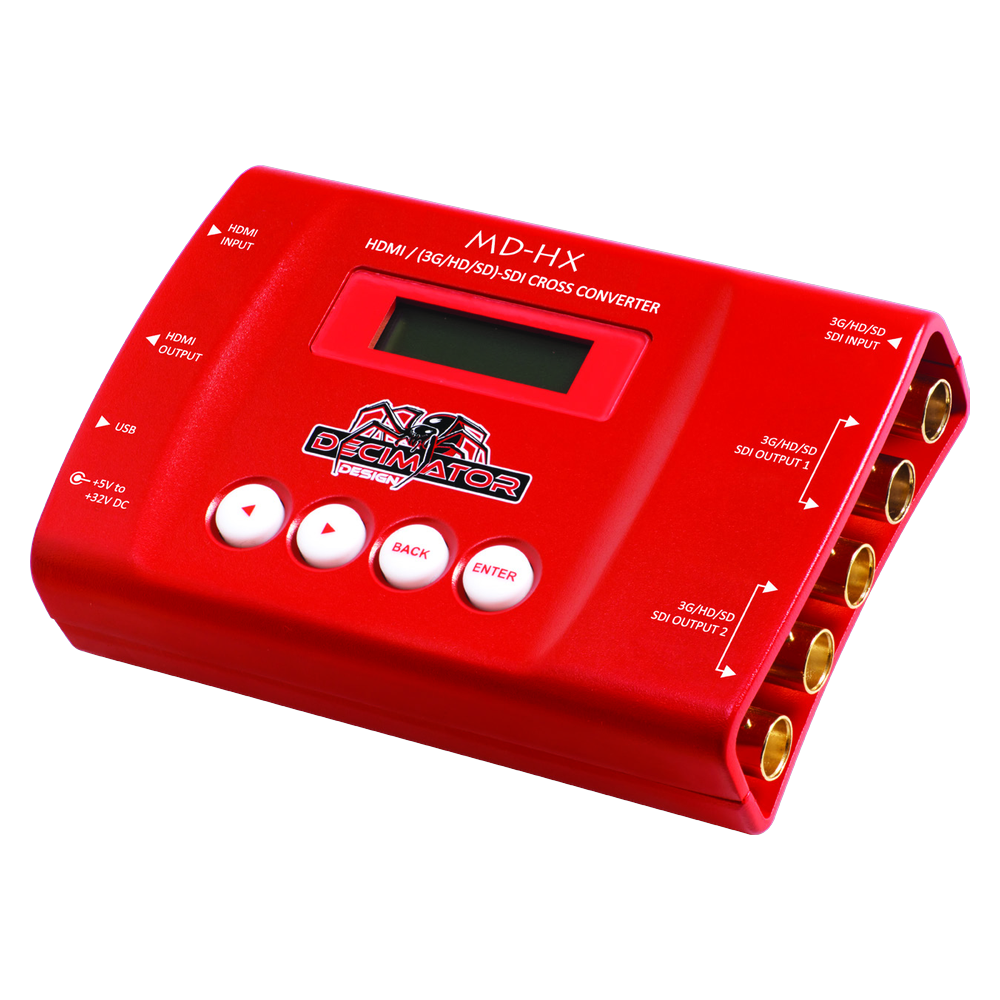

Decimator MD-HX HDMI/SDI Cross Converter
Compact HDMI / (3G/HD/SD)-SDI cross converter with 2K motion-adaptive scaling and frame rate conversion, in a fanless aluminium case.
- HDMI and (3G/HD/SD)-SDI inputs; HDMI output plus 4 x (3G/HD/SD)-SDI outputs, usable as a 1 to 4 distribution amplifier
- Either output can be sourced from either input, or from the 2K motion-adaptive scaling engine
- Scales and/or frame rate converts between 245 input formats and 41 output formats
- Accepts 204 VESA formats on the HDMI input
- 3G level A and B on input and output, with conversion between the two
- Horizontal and/or vertical image flipping
- Overlays for 16-channel audio metering, safe title and safe action, centre cross, UMD text and format status
- Test pattern generator with 41 output formats and 58 patterns
- Audio pairs can be rearranged on the SDI and HDMI outputs
- LCD screen and button control; USB port for control and firmware updates
Supplied with power supply and USB cable.
