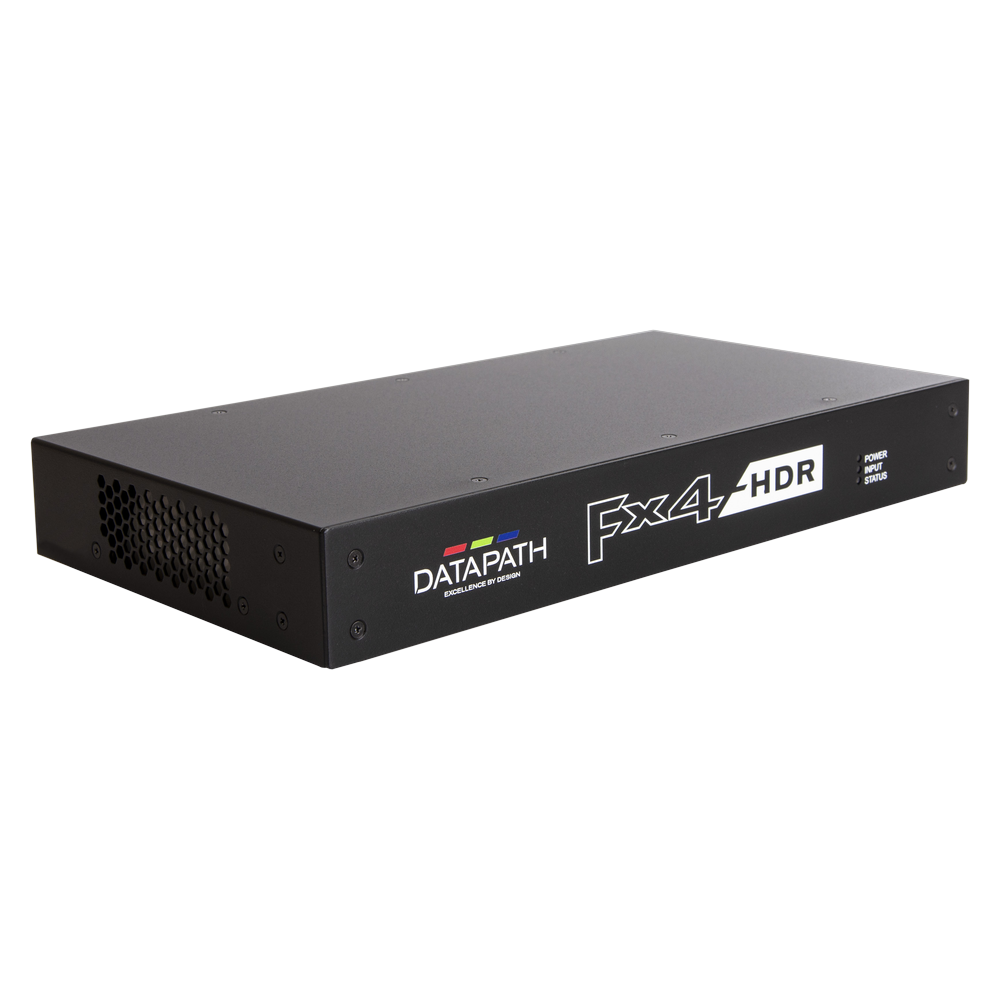

Datapath Fx4-HDR Display Wall Controller
The Datapath Fx4-HDR takes a single 4K source and splits it across up to four displays, each output pulling any region of the input canvas. Rotation, scaling, cropping and bezel correction are handled in hardware, so non-rectangular arrangements and mixed portrait and landscape screens work without a media server behind them.
Downscaling on each output places a region inside an arbitrary area of the screen, which also makes it a tidy way to feed several LED processors with exactly the right pixels for each section of a wall.
- 1 x HDMI 2.0 input (2160p60, HDCP 2.2) plus 2 x HDMI 1.4 inputs (2160p30, or 2160p60 4:2:0)
- 4 x HDMI 1.4 outputs, each independent, up to 1920 x 1200 at 60Hz
- HDMI 2.0 loop-through for daisy-chaining units across a large wall
- Full 10-bit pipeline with HDR10 (ST2084) and HLG
- Input surface up to 8K x 8K
- Rotate, scale, crop, mirror and bezel correction per output
- Audio passthrough, assignable to any single or multiple outputs
- Genlock on analogue black burst or tri-level sync via BNC, or lock to any video input
- Dual 100Base-T Ethernet with an inbuilt managed switch, plus USB 2.0 control
- Configured in Datapath Wall Designer over USB or the network
- 316 x 172 x 42 mm, 1.86 kg, 100-240V 35 W
Holds a pre-loaded image when no signal is present.
