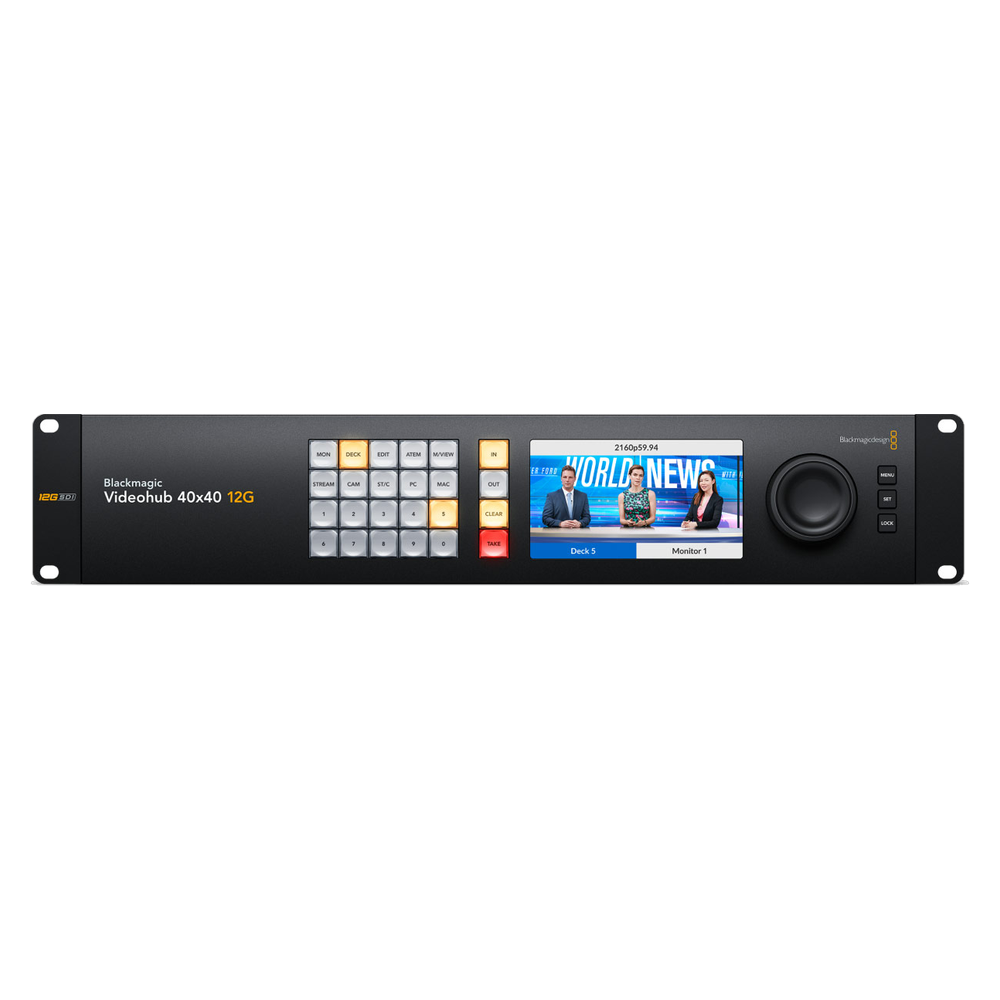

Blackmagic Design Videohub 40×40 12G

A zero-latency 12G-SDI router with 40 inputs and 40 outputs in two rack units. Any combination of SD, HD and Ultra HD can run on the router at the same time, each input auto-detecting its own standard, so 12G camera feeds, 3G playback and SD sources can sit on the same frame without patching around them.

The front panel carries a full HD LCD that previews video before you route it and shows routing labels and video standards, alongside direct button selection and a large spin knob with an electronic clutch.

• 40 x 12G-SDI inputs, 40 x 12G-SDI outputs
• DVB-ASI, 270Mb, 1.5G, 3G, 6G and 12G rates, auto-switching on every input
• All SDI video standards up to 2160p60, plus 2K and 4K DCI
• SDI reclocking on all outputs
• Reference input on tri-level sync or black burst, with a terminating loop output
• Redundant power
• 10/100/1000 Ethernet for external control, USB-C for direct connection
• Free Videohub control software for Mac and Windows, plus SDK and Ethernet control protocol
• Works with Videohub Smart Control Pro and Master Control Pro hardware panels
• 2RU
